General information |
|
Model name
|

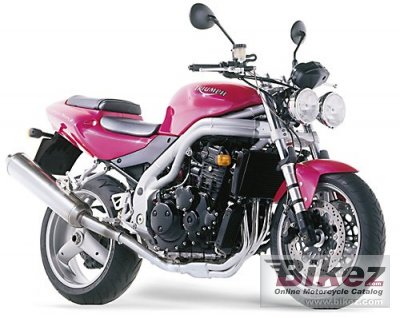

Triumph Speed Triple |
|
Year of manufacture
|
2002 |
|
Type
|
Naked bike |
|
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
955.0 ccm (58.27 cubic inches) |
|
Type of engine
|
In-line three, four-stroke |
|
Output
|
118.0 HP (86.1 kW)) @ 9100 RPM |
|
Torque
|
100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 5100 RPM |
|
Top speed
|
242.0 km/h (150.4 mph) |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
79.0 x 65.0 mm (3.1 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital inductive via electronic engine management |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium, trellis |
|
Rake (fork angle)
|
23.5° |
|
Trail
|
84 mm (3.3 inches) |
|
Front suspension
|
45 mm Forks with dual rate springs and adjustable preload, compression and rebound damping |
|
Rear suspension
|
Monoshock with adjustable preload, compression and rebound damping |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
189.0 kg (416.7 pounds) |
|
Weight incl. oil, gas, etc
|
210.0 kg (463.0 pounds) |
|
Power/weight ratio
|
0.6243 HP/kg |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1250 mm (49.2 inches) |
|
Overall length
|
2115 mm (83.3 inches) |
|
Overall width
|
780 mm (30.7 inches) |
|
Wheelbase
|
1429 mm (56.3 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Oil capacity
|
3.20 litres (3.38 US quarts) |
|
Other specifications |
|
Color options
|
Aston Green, Nuclear Red, Black |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40/15W-50 |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
3.00 litres (0.79 US gallons) |
|
Spark plugs
|
NGK, DPR8EA-9 |
|
Idle speed
|
1200 +/- 50 RPM |
|
Chain links
|
106 |
|
Sprockets
|
18/42 (front/rear) |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
42 PSI (2.9 Bar or 290 kPa) |
|
Fork tube size
|
45 mm (1.8 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
