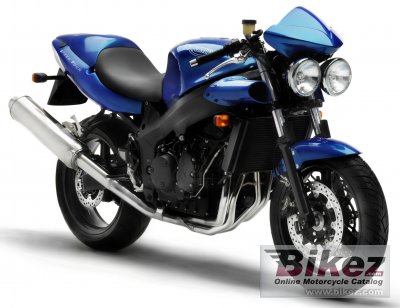

Triumph Speed Four 20052005 Triumph Speed Four specifications, pictures, reviews and rating |
| Triumph's profilation of this bike |
| A sporty, middleweight motorcycle has to perform in many environments - from racetrack to city street and winding back road, perhaps in one day. And the Speed Four has been built not just to perform. - But to amaze. |
| General information | |
|---|---|
| Model name | Triumph Speed Four |
| Year model | 2005 |
| Type | Naked bike |
| Rating | 3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 599.0 ccm (36.55 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Effect | 98.0 HP (71.5 kW)) @ 11750 RPM |
| Torque | 68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 10500 RPM |
| Compression | 12.5:1 |
| Bore x stroke | 68.0 x 41.3 mm (2.7 x 1.6 inches) |
| Fuel system | Injection. Multipoint sequential electronic fuel injection with forced air induction |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital - inductive type - via electronic engine management system |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multi-plate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium beam perimeter |
| Rake (fork angle) | 24.6° |
| Front suspension | 43mm forks with dual rate springs and adjustable preload, compression and rebound damping |
| Rear suspension | Monoshock with adjustable preload, rebound and compression damping |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. 4-piston calipers |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. 2-piston calipers |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 170.0 kg (374.8 pounds) |
| Power/weight ratio | 0.5765 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 2165 mm (85.2 inches) |
| Overall width | 690 mm (27.2 inches) |
| Wheelbase | 1395 mm (54.9 inches) |
| Fuel capacity | 16.60 litres (4.39 US gallons) |
| Other specifications | |
| Color options | Jet Black, Neon Blue |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Triumph Speed Four discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 Triumph Speed Four discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Triumph bike | |
Value for money for the 2005 Triumph Speed Four:  (76.6 out of 100)Click here for complete rating. |
|
