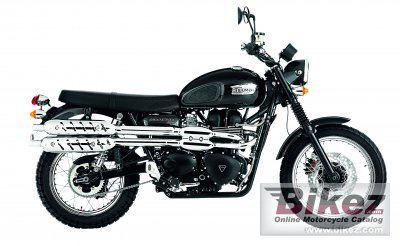

Triumph Scrambler 20102010 Triumph Scrambler specifications, pictures, reviews and rating |
| Triumph's profilation of this bike |
| Triumph’s legendary air cooled 865cc parallel twin features modern fuel injected and with a 270 degree firing order for a distinctive exhaust note through the stylish high swept chromed side pipes you can’t fail to notice. |
| General information | |
|---|---|
| Motorcycle name | Triumph Scrambler |
| Year | 2010 |
| Category | Classic |
| Rating | 4.0 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 865.0 ccm (52.78 cubic inches) |
| Engine type | Twin, four-stroke |
| Power | 59.0 HP (43.1 kW)) @ 6800 RPM |
| Torque | 69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4750 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet. multi-plate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel cradle. Twin-sided, tubular steel swingarm. |
| Rake (fork angle) | 27.8° |
| Trail | 105 mm (4.1 inches) |
| Front suspension | Kayaba 41mm forks. 120mm travel |
| Rear suspension | Kayaba chromed spring twin shocks with adjustable preload. 106mm travel |
| Front tire | 100/90-19 |
| Rear tire | 130/80-17 |
| Front brakes | Single disc. Nissin 2 piston floating caliper |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Nissin 2 piston floating caliper |
| Diameter | 255 mm (10.0 inches) |
| Physical measures and capacities | |
| Dry weight | 205.0 kg (451.9 pounds) |
| Weight incl. oil, gas, etc | 230.0 kg (507.1 pounds) |
| Power/weight ratio | 0.2878 HP/kg |
| Seat height | 825 mm (32.5 inches) If adjustable, lowest setting. |
| Overall height | 1202 mm (47.3 inches) |
| Overall length | 2213 mm (87.1 inches) |
| Overall width | 860 mm (33.9 inches) |
| Wheelbase | 1500 mm (59.1 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Color options | Jet Black. Matt Khaki Green |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Triumph Scrambler discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
