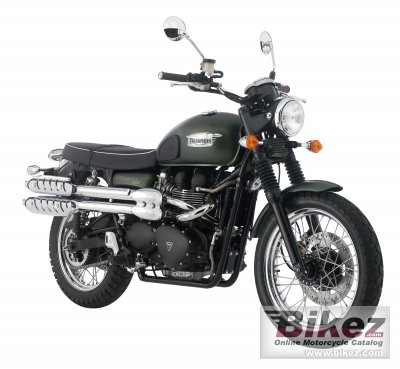

| Triumph's profilation of this bike |
| Inspired by the 60’s Triumph off road sports motorcycles that were stripped down for a purpose, the Scrambler demands attention wherever it goes with its own purposeful look.
|
|
General information |
|
Model
|
Triumph Scrambler |
|
Model year
|
2009 |
|
Category
|
Classic |
|
Rating
|
4.0 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
865.0 ccm (52.78 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power output
|
59.0 HP (43.1 kW)) @ 6800 RPM |
|
Torque
|
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4750 RPM |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
27.8° |
|
Trail
|
105 mm (4.1 inches) |
|
Front suspension
|
41mm forks. 120mm travel |
|
Rear suspension
|
Chromed spring twin shocks with adjustable preload. 106mm rear wheel travel |
|
Front tire
|
100/90-19 |
|
Rear tire
|
130/80-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
205.0 kg (451.9 pounds) |
|
Power/weight ratio
|
0.2878 HP/kg |
|
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1202 mm (47.3 inches) |
|
Overall length
|
2213 mm (87.1 inches) |
|
Overall width
|
865 mm (34.1 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Jet Black. Matt Khaki Green |
|
Starter
|
Electric |
