| Triumph's profilation of this bike |
| The Rocket III Touring is purposely designed and built to make it a great Custom Touring motorcycle.
|
|
General information |
|
Motorcycle name
|

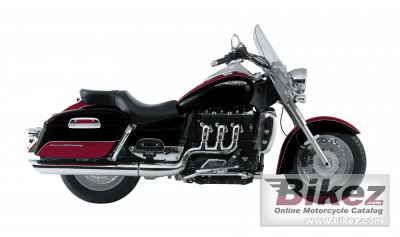

Triumph Rocket III Touring |
|
Year model
|
2009 |
|
Type
|
Touring |
|
Rating
|
3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
2294.0 ccm (139.98 cubic inches) |
|
Type of engine
|
In-line three, four-stroke |
|
Effect
|
105.9 HP (77.3 kW)) @ 5400 RPM |
|
Compression
|
8.7:1 |
|
Bore x stroke
|
101.6 x 94.3 mm (4.0 x 3.7 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection twin butterflies. progressive linkage on primary butterflies |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel. twin spine |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
185 mm (7.3 inches) |
|
Front suspension
|
43mm forks with fully shrouded uppers 120mm travel |
|
Rear suspension
|
Chromed spring twin shocks with 5 position adjustable preload. 105mm wheel travel |
|
Front tire
|
150/80-R16 |
|
Rear tire
|
180/70-R16 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
316 mm (12.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
358.0 kg (789.3 pounds) |
|
Power/weight ratio
|
0.2959 HP/kg |
|
Seat height
|
730 mm (28.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
2603 mm (102.5 inches) |
|
Wheelbase
|
1705 mm (67.1 inches) |
|
Fuel capacity
|
22.30 litres (5.89 US gallons) |
|
Other specifications |
|
Color options
|
Eclipse Blue/Azure Blue. Jet Black. Jet Black/Sunset Red |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Triumph Rocket III Touring discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Triumph bike
|
Design and look for the 2009 Triumph Rocket III Touring:
 (79.4 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
