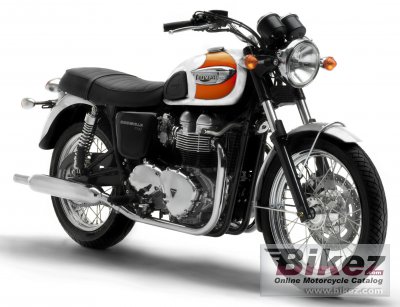

Triumph Bonneville T 100 20052005 Triumph Bonneville T 100 specifications, pictures, reviews and rating |
| Triumph's profilation of this bike |
| Adding subtle touches to the unclutttered Bonneville form, the T100 roadster wears a little extra to mark its connection with the classic speedster of the sixties. |
| General information | |
|---|---|
| Model | Triumph Bonneville T 100 |
| Year model | 2005 |
| Type | Classic |
| Rating | 3.5 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 865.0 ccm (52.78 cubic inches) |
| Type of engine | Twin, four-stroke |
| Effect | 64.0 HP (46.7 kW)) @ 7250 RPM |
| Torque | 68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 6000 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system | Carburettor. Twin carburettors with throttle position sensor and electric carburettor heaters |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital - inductive type |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multi-plate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel cradle |
| Rake (fork angle) | 28.0° |
| Front suspension | 41mm forks |
| Rear suspension | Chromed spring twin shocks with adjustable preloads |
| Front tire | 100/90-19 |
| Rear tire | 130/80-17 |
| Front brakes | Single disc. 2-piston calipers |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. 2-piston calipers |
| Diameter | 255 mm (10.0 inches) |
| Physical measures and capacities | |
| Dry weight | 205.0 kg (451.9 pounds) |
| Power/weight ratio | 0.3122 HP/kg |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall length | 2230 mm (87.8 inches) |
| Overall width | 840 mm (33.1 inches) |
| Wheelbase | 1500 mm (59.1 inches) |
| Fuel capacity | 16.60 litres (4.39 US gallons) |
| Other specifications | |
| Color options | Jet Black/White, White/Tangerine |
