General information |
|
Model
|

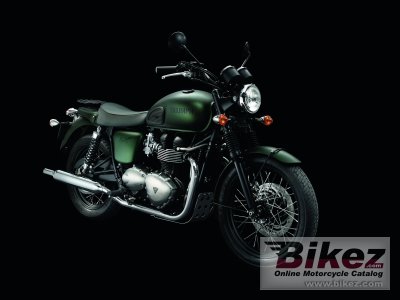

Triumph Bonneville T100 Steve McQueen |
|
Year model
|
2012 |
|
Type
|
Classic |
| Price as new | US$ 9999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
865.0 ccm (52.78 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Engine details
|
360 degree firing interval |
|
Effect
|
66.0 HP (48.2 kW)) @ 7500 RPM |
|
Torque
|
67.8 Nm (6.9 kgf-m or 50.0 ft.lbs) @ 5800 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection with SAI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Driveline
|
X ring chain. Primary drive: Gear. |
|
Fuel consumption
|
4.70 litres/100 km (21.3 km/l or 50.05 mpg) |
|
Greenhouse gases
|
109.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Stainless steel headers, twin chromed silencers. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel cradle |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
110 mm (4.3 inches) |
|
Front suspension
|
Kayaba 41mm forks. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Kayaba chromed spring twin shocks with adjustable preload. |
|
Rear wheel travel
|
106 mm (4.2 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
130/80-R17 |
|
Front brakes
|
Single disc. Nissin 2-piston floating caliper |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Nissin 2-piston floating caliper |
|
Diameter
|
255 mm (10.0 inches) |
|
Wheels
|
Front Wheel: 36-spoke, 19 x 2.5in. Rear Wheel: 40-spoke, 17 x 3.5in |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
230.0 kg (507.1 pounds) |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2228 mm (87.7 inches) |
|
Overall width
|
739 mm (29.1 inches) |
|
Wheelbase
|
1499 mm (59.0 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Oil capacity
|
4.50 litres (4.76 US quarts) |
|
Other specifications |
|
Color options
|
Dark green |
|
Starter
|
Electric |
|
Instruments
|
Analogue speedometer and tachometer with odometer, trip information and clock |
|
Factory warranty
|
2 years |
|
Comments
|
Limited edition of 1100 bikes. |
