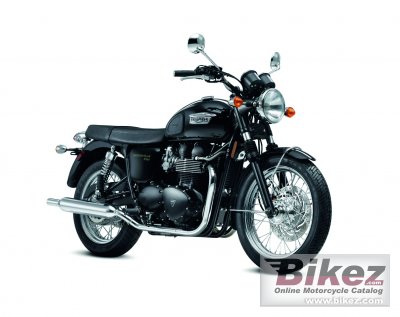

Triumph Bonneville T100 20122012 Triumph Bonneville T100 specifications, pictures, reviews and rating |
| Triumph's profilation of this bike |
| Classic Sixties style wouldn’t be complete without spoked wheels or peashooter exhausts that hark back to the very first Bonnevilles of 1959. Modern disc brakes, suspension and steel cradle frame blend seamlessly into the package and ensure that the T100 is tough enough for today’s road conditions. |
| General information | |
|---|---|
| Motorcycle name | Triumph Bonneville T100 |
| Model year | 2012 |
| Category | Classic |
| Price as new | US$ 8599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.6 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 865.0 ccm (52.78 cubic inches) |
| Engine type | Twin, four-stroke |
| Engine details | 360 degree firing interval |
| Power output | 66.0 HP (48.2 kW)) @ 7500 RPM |
| Torque | 67.8 Nm (6.9 kgf-m or 50.0 ft.lbs) @ 5800 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital-inductive type via engine management system |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet. multi-plate |
| Driveline | X ring chain. Primary drive: Gear. |
| Fuel consumption | 4.70 litres/100 km (21.3 km/l or 50.05 mpg) |
| Greenhouse gases | 109.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Stainless steel headers, twin chromed silencers. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel cradle |
| Rake (fork angle) | 28.0° |
| Front suspension | Kayaba 41mm forks. 120mm travel |
| Rear suspension | Kayaba chromed spring twin shocks with adjustable preload. 106mm rear wheel travel |
| Front tire | 100/90-19 |
| Rear tire | 130/80-R17 |
| Front brakes | Single disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc |
| Diameter | 255 mm (10.0 inches) |
| Wheels | Front Wheel: 36-spoke, 19 x 2.5in. Rear Wheel: 40-spoke, 17 x 3.5in |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 224.5 kg (495.0 pounds) |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 2228 mm (87.7 inches) |
| Overall width | 739 mm (29.1 inches) |
| Wheelbase | 1499 mm (59.0 inches) |
| Fuel capacity | 15.90 litres (4.20 US gallons) |
| Oil capacity | 4.50 litres (4.76 US quarts) |
| Other specifications | |
| Color options | Graphite/Phantom Black, Cranberry/New England White |
| Starter | Electric |
| Instruments | Analogue speedometer and tachometer with odometer and trip information |
| Factory warranty | 2 years |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Triumph Bonneville T100 discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
