| Triumph's profilation of this bike |
| Twin pea-shooter exhausts, two-tone paint and that Triumph embossed seat say ‘classic British motorcycle’ but while the T100 may look like its come straight out of ‘the day’, the technology and ride experience most definitely do not. |
|
General information |
|
Motorcycle name
|

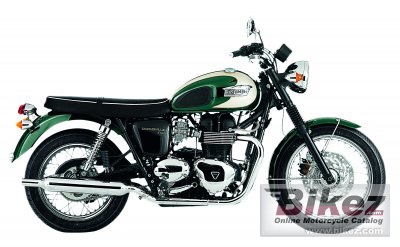

Triumph Bonneville T100 |
|
Year of manufacture
|
2010 |
|
Type
|
Classic |
|
Rating
|
4.1 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
865.0 ccm (52.78 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
67.1 HP (48.9 kW)) @ 7500 RPM |
|
Torque
|
68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 5800 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel cradle. Swingarm: Twin-sided, tubular steel. |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
110 mm (4.3 inches) |
|
Front suspension
|
Kayaba 41mm forks. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Kayaba chromed spring twin shocks with adjustable preload |
|
Rear wheel travel
|
106 mm (4.2 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
130/80-R17 |
|
Front brakes
|
Single disc. Nissin 2 piston floating caliper |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Nissin 2 piston floating caliper |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
230.0 kg (507.1 pounds) |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2230 mm (87.8 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Forest Green/New England White, Jet Black/Fusion White |
|
Starter
|
Electric |
|
Comments
|
Special Edition |
