| Triumph's profilation of this bike |

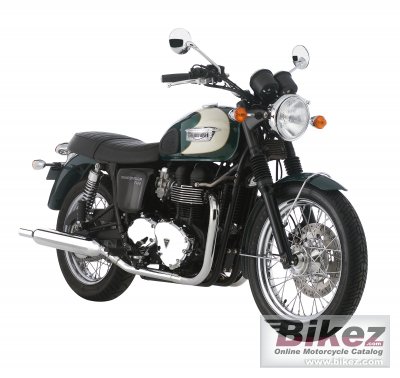

| Like all 2009 Bonnevilles, the T100 benefits from the latest incarnation of Triumph´s legendary 865cc parallel twin, which is now fuel injected. This bike will not only stop people in their tracks, but with disc brakes front and rear, it will stop you nicely too. This is without a doubt a modern motorcycle for the classic rider.
|
|
General information |
|
Motorcycle name
|
Triumph Bonneville T100 |
|
Year of manufacture
|
2009 |
|
Type
|
Classic |
|
Rating
|
4.0 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
865.0 ccm (52.78 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
68.0 HP (49.6 kW)) @ 7500 RPM |
|
Torque
|
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 5800 RPM |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
110 mm (4.3 inches) |
|
Front suspension
|
41mm forks. 120mm travel |
|
Rear suspension
|
Chromed spring twin shocks with adjustable preload 106mm rear wheel travel |
|
Front tire
|
100/90-19 |
|
Rear tire
|
130/80-R17 |
|
Front brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
205.0 kg (451.9 pounds) |
|
Power/weight ratio
|
0.3317 HP/kg |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2230 mm (87.8 inches) |
|
Overall width
|
740 mm (29.1 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Forest Green/New England White, Jet Black/Fusion White, Claret/Aluminium Silver |
|
Starter
|
Electric |
