Triumph Bonneville T100 2004

2004 Triumph Bonneville T100 specifications, pictures, reviews and rating

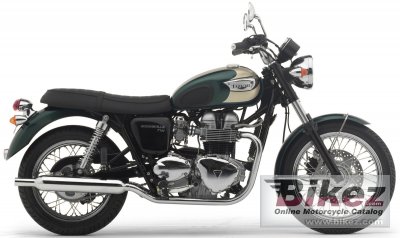

2004 Triumph Bonneville T100. Picture credits - Triumph. Submit more pictures.

2004 Triumph Bonneville T100

Discuss this bike
Rate this motorbike
This bike's rating
1 review available
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Triumph Bonneville T100
Year:	2004
Category:	Classic
Rating:	75.9 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	790.00 ccm (48.21 cubic inches)
Engine type:	Twin, four-stroke
Power:	61.00 HP (44.5 kW)) @ 7400 RPM
Torque:	60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 3500 RPM
Compression:	9.2:1
Bore x stroke:	86.0 x 68.0 mm (3.4 x 2.7 inches)
Fuel system:	Carburettor
Fuel control:	Double Overhead Cams/Twin Cam (DOHC)
Cooling system:	Air
Gearbox:	5-speed
Chassis, suspension, brakes and wheels
Front tyre:	100/90-R 19
Rear tyre:	130/80-R 17
Front brakes:	Single disc
Front brakes diameter:	310 mm (12.2 inches)
Rear brakes:	Single disc
Rear brakes diameter:	255 mm (10.0 inches)
Physical measures and capacities
Dry weight:	205.0 kg (451.9 pounds)
Power/weight ratio:	0.2976 HP/kg
Seat height:	775 mm (30.5 inches) If adjustable, lowest setting.
Overall height:	1,105 mm (43.5 inches)
Overall length:	2,250 mm (88.6 inches)
Overall width:	860 mm (33.9 inches)
Wheelbase:	1,493 mm (58.8 inches)
Fuel capacity:	16.00 litres (4.23 gallons)
Other specifications
Further information
