| General information |
|---|

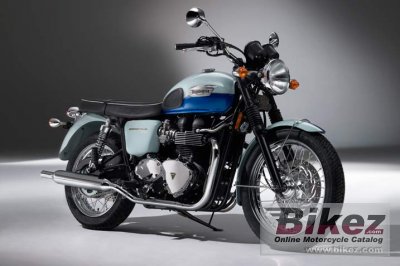

| Model: | Triumph Bonneville Sixty |
| Year: | 2011 |
| Category: | Classic |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 865.00 ccm (52.78 cubic inches) |
| Engine type: | Twin, four-stroke |
| Engine details: | 360 degree firing interval |
| Power: | 66.00 HP (48.2 kW)) @ 7500 RPM |
| Torque: | 67.80 Nm (6.9 kgf-m or 50.0 ft.lbs) @ 5800 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system: | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Digital-inductive type via engine management system |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Driveline: | X ring chain. Primary drive: Gear. |
| Exhaust system: | Stainless steel headers, twin chromed silencers. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel cradle |
| Rake (fork angle): | 28.0° |
| Front suspension: | Kayaba 41mm forks. 120mm travel |
| Rear suspension: | Kayaba chromed spring twin shocks with adjustable preload. 106mm rear wheel travel |
| Front tyre: | 100/90-19 |
| Rear tyre: | 130/80-R17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 255 mm (10.0 inches) |
| Wheels: | Front Wheel: 36-spoke, 19 x 2.5in. Rear Wheel: 40-spoke, 17 x 3.5in |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 224.5 kg (495.0 pounds) |
| Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,100 mm (43.3 inches) |
| Overall length: | 2,228 mm (87.7 inches) |
| Overall width: | 739 mm (29.1 inches) |
| Wheelbase: | 1,499 mm (59.0 inches) |
| Fuel capacity: | 15.90 litres (4.20 gallons) |
| Oil capacity: | 4.50 litres (0.30 quarts) |
| Other specifications |
|---|
| Color options: | Blue/white |
| Instruments: | Analogue speedometer and tachometer with odometer and trip information |
