| Triumph's profilation of this bike |
| The Bonneville was first introduced in 1959, although the 1960 Bonneville T120 was commonly regarded as a more handsome creation than the earliest models thanks to its classic blue and grey colour scheme, blade style mudguard and integrated headlamp/instrument nacelle. |
|
General information |
|
Model name
|

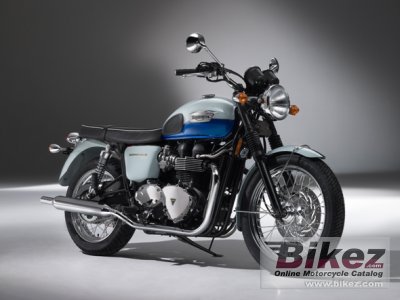

Triumph Bonneville Sixty |
|
Year model
|
2010 |
|
Type
|
Classic |
|
Rating
|
3.9 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
865.0 ccm (52.78 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Effect
|
67.1 HP (48.9 kW)) @ 7500 RPM |
|
Torque
|
68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 5800 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Fuel system
|
Injection |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel cradle. Swingarm: Twin-sided, tubular steel. |
|
Front suspension
|
Kayaba 41mm forks. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Kayaba chromed spring twin shocks with adjustable preload |
|
Rear wheel travel
|
106 mm (4.2 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
130/80-R17 |
|
Front brakes
|
Single disc. Nissin 2 piston floating caliper |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Nissin 2 piston floating caliper |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
230.0 kg (507.1 pounds) |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2230 mm (87.8 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Other specifications |
|
Color options
|
Grey/blue. |
|
Starter
|
Electric |
|
Comments
|
Special Edition of the Bonneville T100. |
