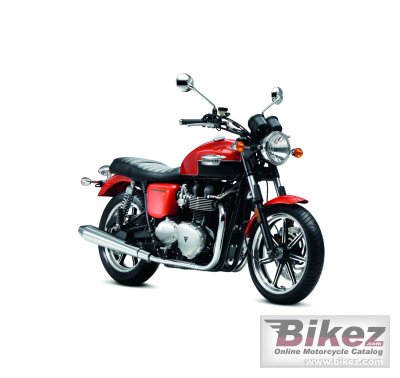

Triumph Bonneville SE 20122012 Triumph Bonneville SE specifications, pictures, reviews and rating |
| Triumph's profilation of this bike |
| Take a Bonneville. Spec up. Enjoy. The most famous name in motorcycling. A legend. Over 50 years of engineering excellence. A thoroughly modern interpretation of the authentic ´proper´ motorcycle. This iconic symbol of rebellion and independence is even more appealing thanks to its modern specification, low seat, fuel-injected 865cc engine and lightweight 17 inch alloys for even sharper handling. |
| General information | |
|---|---|
| Model name | Triumph Bonneville SE |
| Year of manufacture | 2012 |
| Type | Classic |
| Price as new | US$ 8399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 865.0 ccm (52.78 cubic inches) |
| Type of engine | Twin, four-stroke |
| Engine details | 360 degree firing interval |
| Output | 66.0 HP (48.2 kW)) @ 7500 RPM |
| Torque | 67.8 Nm (6.9 kgf-m or 50.0 ft.lbs) @ 5800 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital-inductive type via engine management system |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet. multi-plate |
| Driveline | X ring chain. Primary drive: Gear. |
| Fuel consumption | 4.70 litres/100 km (21.3 km/l or 50.05 mpg) |
| Greenhouse gases | 109.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Stainless steel headers, twin chromed upswept mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel cradle. Swing arm: Engine. |
| Rake (fork angle) | 27.0° |
| Front suspension | Kayaba 41mm forks. 120mm travel |
| Rear suspension | Kayaba chromed spring twin shocks with adjustable preload. 100mm rear wheel travel |
| Front tire | 110/70-R17 |
| Rear tire | 130/80-R17 |
| Front brakes | Single disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc |
| Diameter | 255 mm (10.0 inches) |
| Wheels | Cast aluminum alloy |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 225.0 kg (496.0 pounds) |
| Seat height | 739 mm (29.1 inches) If adjustable, lowest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 2113 mm (83.2 inches) |
| Overall width | 790 mm (31.1 inches) |
| Wheelbase | 1488 mm (58.6 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Oil capacity | 4.50 litres (4.76 US quarts) |
| Other specifications | |
| Color options | Phantom Black. Intense Orange and Phantom Black. Pacific Blue and Fusion White |
| Starter | Electric |
| Instruments | Analogue speedometer and tachometer with odometer, clock and trip information |
| Factory warranty | 2 yeras |
