| Triumph's profilation of this bike |

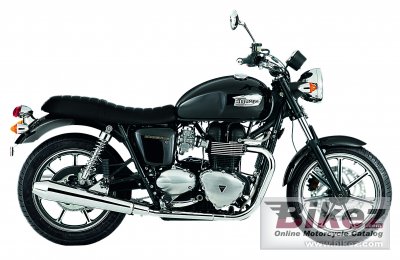

| The SE takes the standard Bonneville and adds that little bit more. Matching tacho and speedo, polished engine casings and a traditional chrome Triumph tank badge give the SE a look of its own |
|
General information |
|
Model name
|
Triumph Bonneville SE |
|
Year
|
2010 |
|
Category
|
Classic |
|
Rating
|
3.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
865.0 ccm (52.78 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power
|
67.1 HP (48.9 kW)) @ 7500 RPM |
|
Torque
|
68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 5800 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection with SAI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel cradle. Swingarm: Twin-sided, tubular steel. |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
106 mm (4.2 inches) |
|
Front suspension
|
Kayaba 41mm forks. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Kayaba chromed spring twin shocks with adjustable preload |
|
Rear wheel travel
|
100 mm (3.9 inches) |
|
Front tire
|
100/70-R17 |
|
Rear tire
|
130/80-R17 |
|
Front brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
225.0 kg (496.0 pounds) |
|
Seat height
|
740 mm (29.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2115 mm (83.3 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Wheelbase
|
1490 mm (58.7 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Jet Black, Pacific Blue/Fusion White |
|
Starter
|
Electric |
|
Comments
|
Special Edition |
