| Triumph's profilation of this bike |
| New for 2009, the Bonneville gets an authentic 70’s look that’s sure to appeal to riders of all ages and experience.
|
|
General information |
|
Model name
|

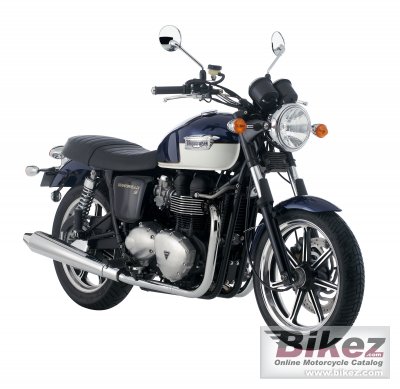

Triumph Bonneville SE |
|
Year
|
2009 |
|
Category
|
Classic |
|
Rating
|
4.1 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
865.0 ccm (52.78 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power
|
68.0 HP (49.6 kW)) @ 7500 RPM |
|
Torque
|
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 5800 RPM |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
41mm forks. 120mm travel |
|
Rear suspension
|
Chromed spring twin shocks with adjustable preload. 100mm rear wheel travel |
|
Front tire
|
110/70-R17 |
|
Rear tire
|
130/80-R17 |
|
Front brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
203.0 kg (447.5 pounds) |
|
Power/weight ratio
|
0.3350 HP/kg |
|
Seat height
|
751 mm (29.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2144 mm (84.4 inches) |
|
Overall width
|
748 mm (29.4 inches) |
|
Wheelbase
|
1454 mm (57.2 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Jet Black. Pacific Blue/Fusion White |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Triumph Bonneville SE discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Triumph bike
|
Reliability for the 2009 Triumph Bonneville SE:
 (97.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
