| Triumph's profilation of this bike |

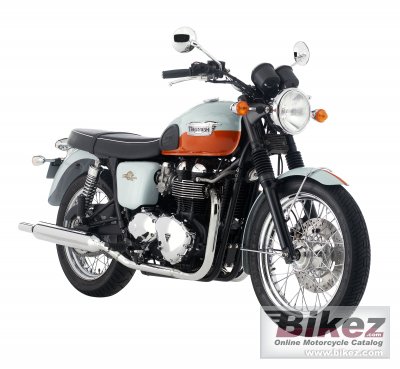

| The iconic model celebrates its 50th anniversary in 2009, and Triumph is marking the occasion with a limited edition model. Just 650 Bonneville T100 50th Anniversary models will be produced in a unique orange and blue colour scheme that echoes the 1959 original. |
|
General information |
|
Model
|
Triumph Bonneville 50th |
|
Year model
|
2009 |
|
Type
|
Classic |
|
Rating
|
3.4 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
865.0 ccm (52.78 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Effect
|
67.1 HP (48.9 kW)) @ 7500 RPM |
|
Torque
|
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 5800 RPM |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection with SAI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel cradle |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
106 mm (4.2 inches) |
|
Front suspension
|
41mm forks. 120mm travel |
|
Rear suspension
|
Chromed spring twin shocks with adjustable preload. 100mm rear wheel travel |
|
Front tire
|
100/70-R17 |
|
Rear tire
|
130/80-R17 |
|
Front brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
203.0 kg (447.5 pounds) |
|
Power/weight ratio
|
0.3303 HP/kg |
|
Seat height
|
751 mm (29.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2144 mm (84.4 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Light blue/orange |
|
Starter
|
Electric |
|
Comments
|
Limited edition of 650 bikes celebrating the 50th Anniversary of the Bonneville. |
