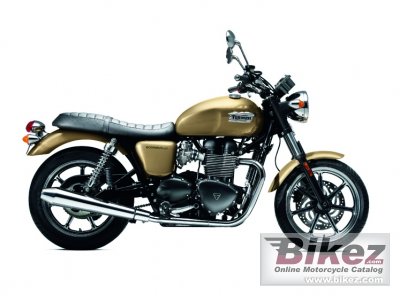

Triumph Bonneville 20132013 Triumph Bonneville specifications, pictures, reviews and rating |
| Triumph's profilation of this bike |
| The most famous name in motorcycling. A legend. Over 50 years of engineering excellence. A thoroughly modern interpretation of the authentic ´proper´ motorcycle. This iconic symbol of rebellion and independence is even more appealing now thanks to its modern specification, low seat, clean fuel-injected 865cc engine and lightweight 17 inch alloys for even sharper handling. Stirs the heart, not the wallet. |
| General information | |
|---|---|
| Model | Triumph Bonneville |
| Year | 2013 |
| Category | Classic |
| Price as new | US$ 7699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 865.0 ccm (52.78 cubic inches) |
| Engine type | Twin, four-stroke |
| Engine details | 360 degree firing interval |
| Power | 68.0 HP (49.6 kW)) @ 7500 RPM |
| Torque | 68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 5800 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital-inductive type via engine management system |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet. multi-plate |
| Driveline | X ring chain |
| Fuel consumption | 5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
| Greenhouse gases | 126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Stainless steel headers. twin chromed upswept silencers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel cradle |
| Rake (fork angle) | 27.0° |
| Front suspension | KYB 41mm forks, 120mm travel |
| Rear suspension | KYB chromed spring twin shocks with adjustable preload, 100mm rear wheel travel |
| Front tire | 100/70-R17 |
| Rear tire | 130/80-R17 |
| Front brakes | Single disc. Nissin 2-piston floating caliper |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Nissin 2-piston floating caliper |
| Diameter | 255 mm (10.0 inches) |
| Wheels | Cast aluminium alloy, 7-spoke |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 225.0 kg (496.0 pounds) |
| Seat height | 740 mm (29.1 inches) If adjustable, lowest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 790 mm (31.1 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Oil capacity | 4.50 litres (4.76 US quarts) |
| Other specifications | |
| Color options | Orange/Phantom Black, Purple/White, White |
| Starter | Electric |
| Instruments | Analogue speedometer with odometer, clock and trip information |
| Update specs | Report missing specs or required updates. |
