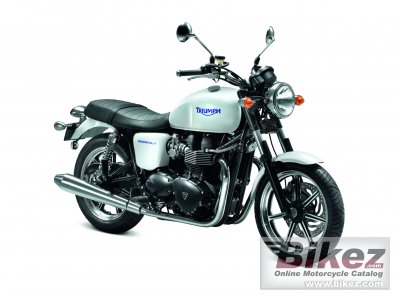

Triumph Bonneville 20122012 Triumph Bonneville specifications, pictures, reviews and rating |
| Triumph's profilation of this bike |
| Built in the spirit of the all-conquering British twins that ruled the roads in the 1960s, the modern day Bonnevilles uniquely combine up-to-date design and manufacturing methods with traditional styling and attitude. |
| General information | |
|---|---|
| Model name | Triumph Bonneville |
| Model year | 2012 |
| Category | Classic |
| Price as new | US$ 7699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.9 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 865.0 ccm (52.78 cubic inches) |
| Engine type | Twin, four-stroke |
| Engine details | 360 degree firing interval |
| Power output | 68.0 HP (49.6 kW)) @ 7500 RPM |
| Torque | 68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 5800 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital-inductive type via engine management system |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet. multi-plate |
| Driveline | X ring chain |
| Fuel consumption | 5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
| Greenhouse gases | 126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Stainless steel headers. twin chromed upswept silencers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel cradle |
| Rake (fork angle) | 27.0° |
| Front suspension | Kayaba 41mm forks. 120mm travel |
| Rear suspension | Kayaba chromed spring twin shocks with adjustable preload. 100mm rear wheel travel |
| Front tire | 100/70-R17 |
| Rear tire | 130/80-R17 |
| Front brakes | Single disc. Nissin 2-piston floating caliper |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Nissin 2-piston floating caliper |
| Diameter | 255 mm (10.0 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 225.0 kg (496.0 pounds) |
| Seat height | 740 mm (29.1 inches) If adjustable, lowest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 790 mm (31.1 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Oil capacity | 4.50 litres (4.76 US quarts) |
| Other specifications | |
| Color options | Phantom Black. Crystal White. Gold. |
| Starter | Electric |
| Instruments | Analogue speedometer with odometer, clock and trip information |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Triumph Bonneville discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Free motorcycle classifieds
Click here to sell a used 2012 Triumph Bonneville or advertise any other MC for sale. You can list all available Triumph Bonneville bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world. You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.| Rating sample for this Triumph bike | |
Reliability for the 2012 Triumph Bonneville:  (91.9 out of 100)Click here for complete rating. |
|
