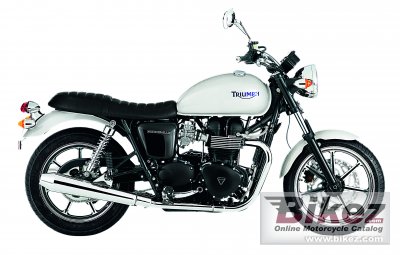

Triumph Bonneville 20102010 Triumph Bonneville specifications, pictures, reviews and rating |
| Triumph's profilation of this bike |
| With the latest Triumph Bonneville you’re riding over 50 years of engineering excellence. A thoroughly modern interpretation of the definitive ‘proper’ motorcycle, this iconic symbol of rebellion and independence is even more accessible thanks to its low and narrow seat, clean and efficient fuel-injected engine and lightweight 17” alloy wheels for even sharper handling. |
| General information | |
|---|---|
| Model | Triumph Bonneville |
| Year model | 2010 |
| Type | Classic |
| Rating | 3.6 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 865.0 ccm (52.78 cubic inches) |
| Type of engine | Twin, four-stroke |
| Effect | 67.1 HP (48.9 kW)) @ 7500 RPM |
| Torque | 69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 5800 RPM |
| Bore x stroke | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet. multi-plate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel cradle. Swingarm: Twin-sided, tubular steel. |
| Rake (fork angle) | 27.0° |
| Trail | 106 mm (4.2 inches) |
| Front suspension | Kayaba 41mm forks. |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Kayaba chromed spring twin shocks with adjustable preload |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | 100/70-R17 |
| Rear tire | 130/80-R17 |
| Front brakes | Single disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc |
| Diameter | 255 mm (10.0 inches) |
| Physical measures and capacities | |
| Dry weight | 203.0 kg (447.5 pounds) |
| Weight incl. oil, gas, etc | 225.0 kg (496.0 pounds) |
| Power/weight ratio | 0.3303 HP/kg |
| Seat height | 740 mm (29.1 inches) If adjustable, lowest setting. |
| Overall length | 2115 mm (83.3 inches) |
| Overall width | 790 mm (31.1 inches) |
| Wheelbase | 1490 mm (58.7 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Color options | Jet Black. Fusion White |
| Starter | Electric |
