| Triumph's profilation of this bike |
| A modern day roadster with a tangible connection to the classic style of times gone by, the Bonneville mixes timeless British engineering with modern technology and thinking. The result is captivating. |
| General information |
|---|

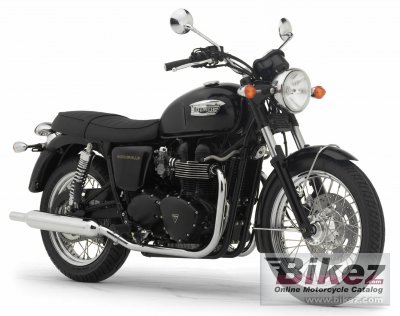

| Model: | Triumph Bonneville |
| Year: | 2006 |
| Category: | Classic |
| Price as new: | US$ 7499. MSRP depends on country, taxes, accessories, etc. |
| Rating: | 3.7 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 790.0 ccm (48.21 cubic inches) |
| Engine type: | Twin, four-stroke |
| Power: | 62.0 HP (45.3 kW)) @ 7300 RPM |
| Torque: | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 7200 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 86.0 x 68.0 mm (3.4 x 2.7 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Digital - inductive type |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multi-plate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel cradle |
| Rake (fork angle): | 28.0° |
| Front suspension: | 41mm forks |
| Rear suspension: | Chromed spring twin shocks with adjustable preload |
| Front brakes: | Single disc |
| Diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 255 mm (10.0 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 205.0 kg (451.9 pounds) |
| Power/weight ratio: | 0.3024 HP/kg |
| Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall length: | 2230 mm (87.8 inches) |
| Overall width: | 840 mm (33.1 inches) |
| Wheelbase: | 1500 mm (59.1 inches) |
| Fuel capacity: | 16.60 litres (4.39 gallons) |
| Other specifications |
|---|
| Color options: | Jet Black, Goodwood Green, Aluminum Silver (Jet Black also available with black engine finish) |
