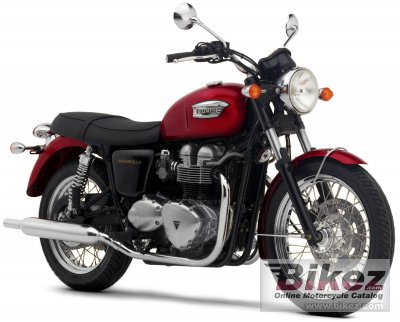

Triumph Bonneville 20042004 Triumph Bonneville specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Triumph Bonneville |
| Model year | 2004 |
| Category | Classic |
| Rating | 4.1 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 790.0 ccm (48.21 cubic inches) |
| Engine type | Twin, four-stroke |
| Power output | 61.0 HP (44.5 kW)) @ 7400 RPM |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 3500 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 86.0 x 68.0 mm (3.4 x 2.7 inches) |
| Fuel system | Carburettor |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Chassis, suspension, brakes and wheels | |
| Front tire | 100/90-R 19 |
| Rear tire | 130/80-R 17 |
| Front brakes | Single disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc |
| Diameter | 255 mm (10.0 inches) |
| Physical measures and capacities | |
| Dry weight | 205.0 kg (451.9 pounds) |
| Power/weight ratio | 0.2976 HP/kg |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2250 mm (88.6 inches) |
| Overall width | 860 mm (33.9 inches) |
| Wheelbase | 1493 mm (58.8 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Triumph Bonneville discussion group or the general Triumph discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Triumph. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2004 Triumph Bonneville for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Triumph bike | |
Reliability for the 2004 Triumph Bonneville:  (91.2 out of 100)Click here for complete rating. |
|
