General information |
|
Model name
|

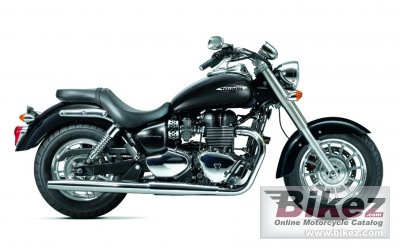

Triumph America |
|
Year
|
2013 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 8299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
865.0 ccm (52.78 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Engine details
|
270 degree firing interval |
|
Power
|
61.0 HP (44.5 kW)) @ 6800 RPM |
|
Torque
|
72.0 Nm (7.3 kgf-m or 53.1 ft.lbs) @ 3300 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
90.0 x 68.0 mm (3.5 x 2.7 inches) |
|
Fuel system
|
Injection. Multipoint sequential electronic fuel injection with SAI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet. multi-plate |
|
Driveline
|
X ring chain |
|
Exhaust system
|
Stainless steel twin-walled headers. twin chromed silencers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel cradle |
|
Rake (fork angle)
|
33.0° |
|
Trail
|
143 mm (5.6 inches) |
|
Front suspension
|
KYB 41mm forks with polished stainless steel shrouds and polished lowers. 120mm travel |
|
Rear suspension
|
KYB chromed spring twin shocks with adjustable preload. 96mm rear wheel travel |
|
Front tire
|
130/90-R16 |
|
Rear tire
|
170/80-B15 |
|
Front brakes
|
Single disc. Nissin 2-piston floating caliper |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Nissin 2-piston floating caliper |
|
Diameter
|
285 mm (11.2 inches) |
|
Wheels
|
Cast aluminium alloy 12-spoke |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
250.0 kg (551.2 pounds) |
|
Seat height
|
690 mm (27.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1141 mm (44.9 inches) |
|
Overall length
|
2420 mm (95.3 inches) |
|
Overall width
|
821 mm (32.3 inches) |
|
Wheelbase
|
1617 mm (63.7 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Oil capacity
|
4.50 litres (4.76 US quarts) |
|
Other specifications |
|
Color options
|
Phantom Black. Blue/White |
|
Starter
|
Electric |
|
Instruments
|
Analogue speedometer with odometer and trip information. |
|
Factory warranty
|
24 months unlimited milage |
| Update specs | Report missing specs or required updates. |
|
