| General information |
|---|

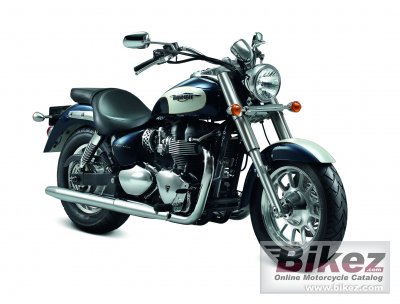

| Model: | Triumph America |
| Year: | 2011 |
| Category: | Custom / cruiser |
| Rating: | 3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 865.0 ccm (52.78 cubic inches) |
| Engine type: | Twin, four-stroke |
| Engine details: | 270 degree firing interval |
| Power: | 60.0 HP (43.8 kW)) @ 6800 RPM |
| Torque: | 71.9 Nm (7.3 kgf-m or 53.0 ft.lbs) @ 3300 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system: | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Digital-inductive type via engine management system |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Driveline: | X ring chain. Primary drive: Gear. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel cradle. Swing arm: Engine. |
| Rake (fork angle): | 33.4° |
| Front suspension: | Kayaba 41mm forks with polished stainless steel shrouds and polished lowers. 120mm travel |
| Rear suspension: | Kayaba chromed spring twin shocks with adjustable preload. 96mm rear wheel travel |
| Front tyre: | 130/90-R16 |
| Rear tyre: | 170/80-B15 |
| Front brakes: | Single disc |
| Diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 285 mm (11.2 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 249.5 kg (550.0 pounds) |
| Seat height: | 688 mm (27.1 inches) If adjustable, lowest setting. |
| Overall height: | 1173 mm (46.2 inches) |
| Overall length: | 2418 mm (95.2 inches) |
| Overall width: | 820 mm (32.3 inches) |
| Wheelbase: | 1608 mm (63.3 inches) |
| Fuel capacity: | 19.30 litres (5.10 gallons) |
| Other specifications |
|---|
| Color options: | Phantom Black. Eclipse Blue and Crystal White |
| Starter: | Electric |
| Comments: | Also called New America. |
