| Tomos' profilation of this bike |
| No description can do the Arrow justice. Light, responsive, and powerful, the Arrow will quickly move you in and out of traffic safely. |
|
General moped information |
|
Model name
|

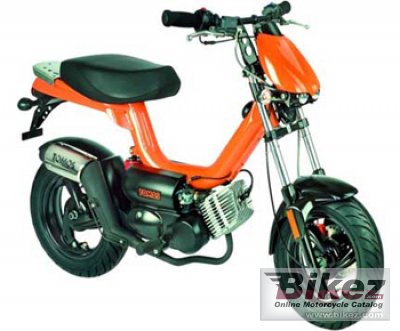

Tomos Arrow |
|
Model year
|
2010 |
|
Category
|
Scooter |
|
Rating
|
4.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
2.4 HP (1.8 kW)) |
|
Torque
|
4.7 Nm (0.5 kgf-m or 3.5 ft.lbs) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Swingarm with single shock |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
64.9 kg (143.0 pounds) |
|
Power/weight ratio
|
0.0370 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
3.48 litres (0.92 US gallons) |
|
Reserve fuel capacity
|
0.76 litres (0.20 US gallons) |
|
Other specifications |
|
Color options
|
Blue |
|
Starter
|
Electric |
|
Comments
|
Tomos scotters are made in Slovenia. |
