Tomberlin SDX 150 ATV 2011

2011 Tomberlin SDX 150 ATV specifications, pictures, reviews and rating

Picture credits - Tomberlin. Click to submit more pictures.

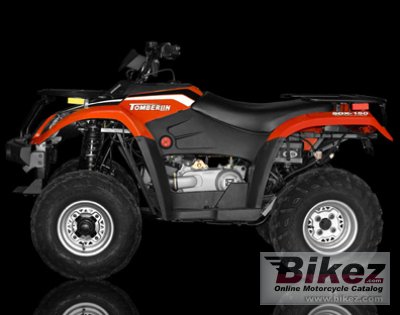

2011 Tomberlin SDX 150 ATV

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

Tomberlin's profilation of this bike

At Tomberlin Outdoor we put you in touch with your wild side.

General information
Model:	Tomberlin SDX 150 ATV
Year:	2011
Category:	ATV
Rating:	Do you know this bike? Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:	147.30 ccm (8.99 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	8.80 HP (6.4 kW))
Compression:	9.2:1
Bore x stroke:	57.0 x 57.8 mm (2.2 x 2.3 inches)
Fuel system:	Carburettor. ENI
Lubrication system:	Forced Pressure Wet Sump
Cooling system:	Air
Transmission type, final drive:	Belt
Chassis, suspension, brakes and wheels
Front suspension:	MacPherson Strut, Single A-Arm
Rear suspension:	Swingarm, Coil Over Shock
Front tyre:	22/7-10
Rear tyre:	22/10-10
Front brakes:	Single disc. Hydraulic
Rear brakes:	Single disc. Hydraulic
Physical measures and capacities
Dry weight:	236.3 kg (521.0 pounds)
Power/weight ratio:	0.0372 HP/kg
Seat height:	869 mm (34.2 inches) If adjustable, lowest setting.
Wheelbase:	1,204 mm (47.4 inches)
Fuel capacity:	15.90 litres (4.20 gallons)
Other specifications
Starter:	Electric
Light:	Dual front lights
Carrying capacity:	Maximum Load: 257 lbs. Rear Rack Max Load: 20lbs.
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
ATV parts	Sixity.com sells ATV parts with free shipping to the US.
Ask questions	Join the 11 Tomberlin SDX 150 ATV discussion group or the general Tomberlin discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.
