| Tomberlin's profilation of this bike |
| Tomberlin has taken All Terrain Vehicles to the next level with it´s SDX-600 4x4 IRS that sports a laundry list of amazing standard features. |
|
General information |
|
Motorcycle name
|

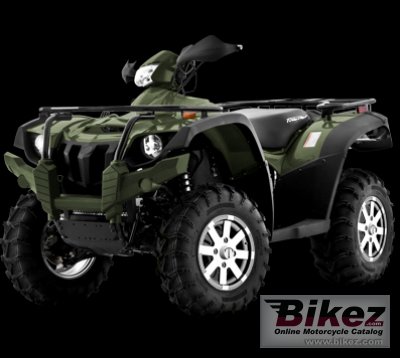

Tomberlin SDX-600 IRS ATV |
|
Year
|
2011 |
|
Category
|
ATV |
|
Rating
|
3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
551.5 ccm (33.65 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
46.1 Nm (4.7 kgf-m or 34.0 ft.lbs) @ 5500 RPM |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
72.5 x 66.8 mm (2.9 x 2.6 inches) |
|
Fuel system
|
Injection. Delphi-Electronic Fuel Injection |
|
Ignition
|
CDI |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
Independent Rear Suspension. Shift-on-the-Fly 4-Wheel Drive. Hi/Lo Automatic CVT |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Dual A-Arm |
|
Rear suspension
|
Dual A-Arm |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
358.3 kg (790.0 pounds) |
|
Overall height
|
1199 mm (47.2 inches) |
|
Overall length
|
2121 mm (83.5 inches) |
|
Overall width
|
1184 mm (46.6 inches) |
|
Wheelbase
|
1283 mm (50.5 inches) |
|
Other specifications |
|
Color options
|
Dark green |
|
Starter
|
Electric |
|
Electrical
|
12V14AH |
|
Light
|
Intense Projector-Beam Head Lights |
|
Carrying capacity
|
Lockable-Rear Storage |
|
Comments
|
Winch |
