Tomberlin SDX-400 IRS ATV 20112011 Tomberlin SDX-400 IRS ATV specifications, pictures, reviews and rating |

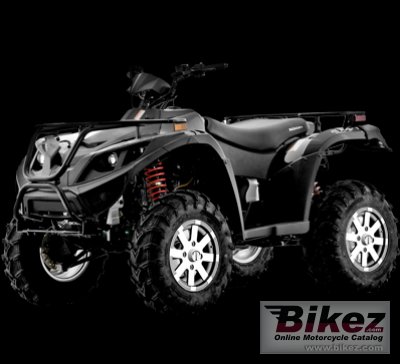

2011 Tomberlin SDX-400 IRS ATV. Image credits - Tomberlin.
| Tomberlin's profilation of this bike |
| For 2011, Tomberlin´s SDX series will grow. The 400 and 600 4x4 IRS machines are packed with features for a value proposition second to none. |
| General information | |
|---|---|
| Model name | Tomberlin SDX-400 IRS ATV |
| Year model | 2011 |
| Type | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 352.0 ccm (21.48 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Torque | 27.0 Nm (2.8 kgf-m or 19.9 ft.lbs) @ 5500 RPM |
| Compression | 9.8:1 |
| Bore x stroke | 80.0 x 70.0 mm (3.1 x 2.8 inches) |
| Fuel system | Carburettor. Keihin |
| Fuel control | Overhead Valves (OHV) |
| Ignition | CDI |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Driveline | Independent Rear Suspension. Shift-on-the-Fly 4-Wheel Drive. Hi/Lo Automatic CVT |
| Chassis, suspension, brakes and wheels | |
| Front suspension | McPherson Strut |
| Rear suspension | Dual-A Arm |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Single disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Physical measures and capacities | |
| Dry weight | 319.8 kg (705.0 pounds) |
| Overall height | 1199 mm (47.2 inches) |
| Overall length | 2111 mm (83.1 inches) |
| Overall width | 1140 mm (44.9 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Other specifications | |
| Color options | Grey |
| Starter | Electric |
| Light | Intense Projector-Beam Head Lights |
| Carrying capacity | Integrated Front and Rear Cargo Rack Tie-Downs |
| Comments | Winch |
