General information |
|
Model
|

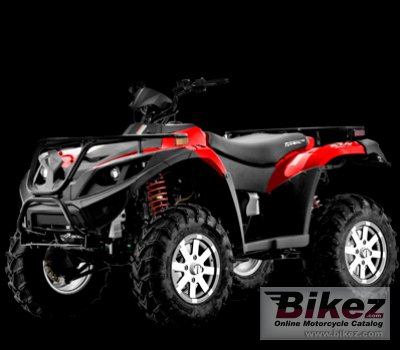

Tomberlin SDX-300 4x4 ATV |
|
Model year
|
2011 |
|
Category
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
275.7 ccm (16.82 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Torque
|
22.4 Nm (2.3 kgf-m or 16.5 ft.lbs) @ 5500 RPM |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
72.5 x 66.8 mm (2.9 x 2.6 inches) |
|
Fuel system
|
Carburettor. Keihin |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
CDI |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
4x4 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
McPherson Strut |
|
Rear suspension
|
Swing Arm |
|
Front tire
|
24/8-12 |
|
Rear tire
|
24/11-12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Rear brakes
|
Single disc. Hydraulic |
|
Physical measures and capacities |
|
Dry weight
|
295.0 kg (650.3 pounds) |
|
Overall height
|
1194 mm (47.0 inches) |
|
Overall length
|
2075 mm (81.7 inches) |
|
Overall width
|
1140 mm (44.9 inches) |
|
Wheelbase
|
1204 mm (47.4 inches) |
|
Other specifications |
|
Color options
|
Red, grey |
|
Starter
|
Electric |
|
Light
|
Dual front lights |
