General information |
|
Model
|

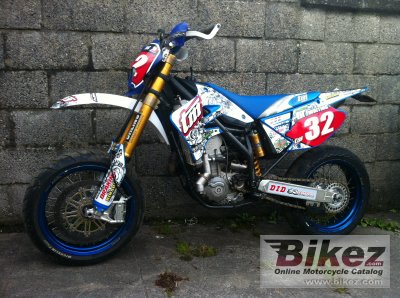

TM Racing SMX 660 F Competition |
|
Year
|
2005 |
|
Category
|
Super motard |
|
Rating
|
3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
657.2 ccm (40.10 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
104.0 x 77.4 mm (4.1 x 3.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin FCR 41 mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Koukusan CDI electronic w/variable advance. |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-disk in oil-bath with hydraulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo steel. Perimetral oval section. |
|
Front suspension
|
Kayaba/Paioli USD 48 mm (optional Ohlins 46-48 mm) |
|
Rear suspension
|
Ohlins |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
Racing tires. Titanium valves. |
