| TM Racing's profilation of this bike |
| The philosophy that has always distinguished TM is without doubt the choice of materials, which must always be of the highest quality, and the workmanship, even defined by some as ´obsessive´, not to mention the high performance of the
engines used on the standard bikes, in many cases far superior to those of the most prestigious competitors. |
|
General information |
|

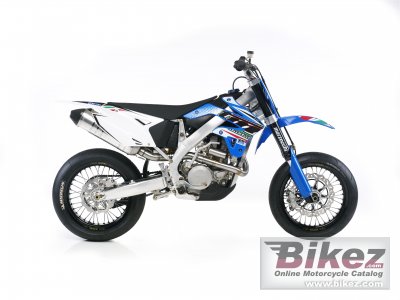

Motorcycle name
|
TM Racing SMX 530 F |
|
Model year
|
2012 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
527.7 ccm (32.20 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
98.0 x 70.0 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni TDMR 41 mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan DCI Electronic with variable advance |
|
Lubrication system
|
Dry sump with 2 pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Multiple-disk in oil-bath with hydraulic control |
|
Driveline
|
Primary drive: Straight – tooth gear |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium perimetral |
|
Front suspension
|
Marzocchi USD fork, 50mm |
|
Rear suspension
|
Sachs Boge (optional Ohlins o TM) |
|
Front brakes
|
Single disc. Braking wave Disk. With Nissin pump and caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Braking wave Disk. With Nissin pump and caliper |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Blue rims, Racing tyres. |
|
Physical measures and capacities |
|
Fuel capacity
|
8.20 litres (2.17 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white/black |
|
Starter
|
Electric & kick |
|
Comments
|
Italian made bike. |
