TM Racing SMX 450 F Comp 20102010 TM Racing SMX 450 F Comp specifications, pictures, reviews and rating |

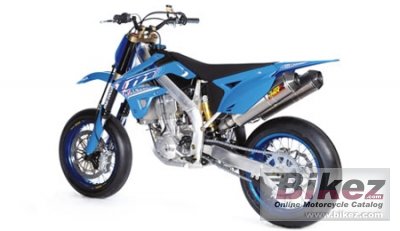

 2010 TM Racing SMX 450 F Comp. Picture credits - TM racing. Submit more pictures. |
|
| General information | |
|---|---|
| Motorcycle name | TM Racing SMX 450 F Comp |
| Year model | 2010 |
| Type | Super motard |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 449.2 ccm (27.41 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Bore x stroke | 95.0 x 63.4 mm (3.7 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin FCR 41mm |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Kokusan CDI Electronic with variable advance |
| Lubrication system | Dry sump with double rotor pump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Perimetral aluminium section |
| Front suspension | Marzocchi USD 50mm ( optional Ohlins 48 mm ) |
| Rear suspension | Sachs Boge (optional Ohlins ) |
| Front tire | 120/70-ZR17 |
| Rear tire | 150/60-ZR17 |
| Front brakes | Single disc. Brembo radial pump and caliper |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Nissin radial pump and caliper |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Other specifications | |
| Color options | Blue/black/gray |
| Starter | Electric |
| Comments | Also called SMX 450 F Competition. Optional electric start. Italian made bike. |
