| TM Racing's profilation of this bike |
| Great attention has been paid to development of the new 450 cc, which will inevitably eventually replace the 400 cc, more due to market trends however than for reasons of trying to increase the performance |
|
General information |
|
Model
|

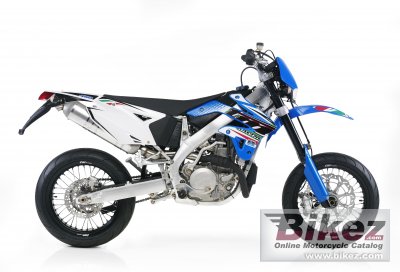

TM Racing SMR 450 F |
|
Model year
|
2012 |
|
Category
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
449.2 ccm (27.41 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Titanium valves |
|
Power output
|
10.5 HP (7.7 kW)) |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni TDMR 40 mm Carburetor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan CDI Electronic with variable advance |
|
Lubrication system
|
Primary drive: Straight – tooth gear |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiuple-disk in oil-bath with hydaulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimetral aluminium |
|
Front suspension
|
Marzocchi USD, 45 mm |
|
Rear suspension
|
Sachs Boge ( optional Ohlins ) |
|
Front tire
|
110/70-ZR17 |
|
Rear tire
|
150/60-ZR17 |
|
Front brakes
|
Single disc. Brembo radial pump and caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Nissin pump and Brembo caliper |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Fuel capacity
|
8.20 litres (2.17 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Kick |
|
Comments
|
From Italy. |
