TM Racing SMR 125 20062006 TM Racing SMR 125 specifications, pictures, reviews and rating |

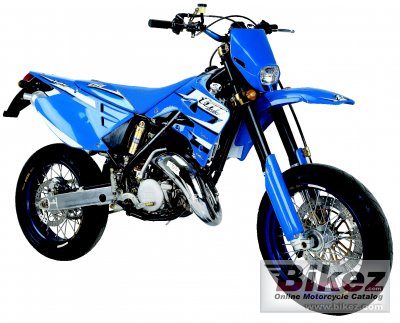

 2006 TM Racing SMR 125. Picture credits - TM racing. Submit more pictures.
|
| General information | |
|---|---|
| Model: | TM Racing SMR 125 |
| Year: | 2006 |
| Category: | Super motard |
| Rating: | 3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement: | 123.5 ccm (7.54 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 16.7:1 |
| Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Keihin PWK 38 |
| Ignition: | Kokusan CDI Electronic with variable advance |
| Lubrication system: | Dry sump with double rotor pump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
| Transmission type, final drive: | Chain |
| Clutch: | Multiuple-disk in oil-bath with hydaulic control |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Cr-Mo. Perimetral oval section |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 150/70-ZR17 |
| Front brakes: | Single disc |
| Diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Fuel capacity: | 8.00 litres (2.11 gallons) |
| Other specifications | |
