General information |
|
Motorcycle name
|

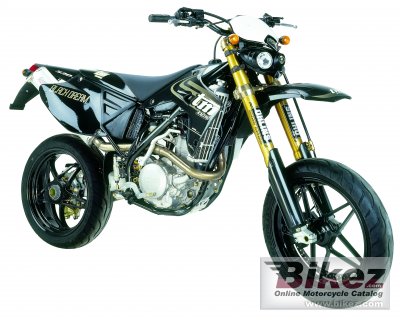

TM Racing SMM 530 F Black Dream e.s. |
|
Year of manufacture
|
2007 |
|
Type
|
Super motard |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
527.7 ccm (32.20 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
98.0 x 70.0 mm (3.9 x 2.8 inches) |
|
Fuel system
|
Carburettor. Mikuni TDMR 41mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan CDI Electronic with variable advance |
|
Lubrication system
|
Dry sump with double rotor pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Multiuple-disk in oil-bath with hydaulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Cr-Mo steel Perimetral oval section |
|
Front tire
|
120/70-17 |
|
Rear tire
|
150/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
