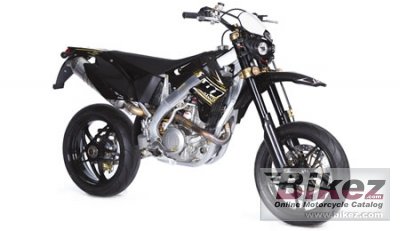

TM Racing SMM 530 F B. D. e.s. 20102010 TM Racing SMM 530 F B. D. e.s. specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | TM Racing SMM 530 F B. D. e.s. |
| Model year | 2010 |
| Category | Super motard |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 527.7 ccm (32.20 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 98.0 x 70.0 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Mikuni TDMR 41mm |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Kokusan CDI Electronic with variable advance |
| Lubrication system | Dry sump with double rotor pump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiuple-disk in oil-bath with hydaulic control |
| Chassis, suspension, brakes and wheels | |
| Frame type | Perimetral aluminium section |
| Front suspension | Marzocchi USD 46mm |
| Rear suspension | Sachs Boge ( optional Ohlins ) |
| Front tire | 120/70-ZR17 |
| Rear tire | 150/60-ZR17 |
| Front brakes | Single disc. Radial pump and Brembo caliper |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Nissin pump and Brembo caliper |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Fuel capacity | 8.20 litres (2.17 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric & kick |
| Comments | Also named SMM 530 F Black Dream e.s. made in Italy. |
