General information |
|
Model
|

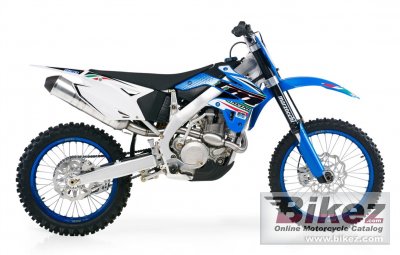

TM Racing MX 530 F |
|
Year
|
2012 |
|
Category
|
Cross / motocross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
527.7 ccm (32.20 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Titanium valves |
|
Bore x stroke
|
98.0 x 70.0 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin FCRD 41mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan DCI Electronic with variable advance |
|
Lubrication system
|
Dry sump with 2 pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Driveline
|
Primary drive: Straight – tooth gear |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimetral aluminium section |
|
Front suspension
|
Marzocchi USD fork, 50mm |
|
Rear suspension
|
Sachs Boge (optional Ohlins) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc. Braking wave Disk. With Nissin pump and caliper |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc. Braking wave Disk. With Nissin pump and caliper |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
Spoked. Blue rims |
|
Physical measures and capacities |
|
Fuel capacity
|
8.20 litres (2.17 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Kick |
|
Comments
|
Optional electric start. Italian made bike. |
