General information |
|
Model name
|

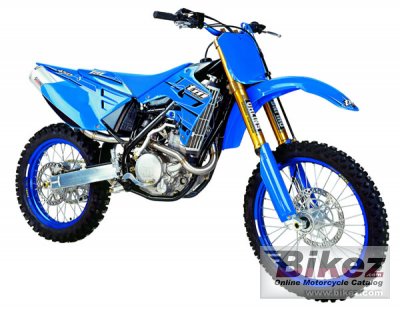

TM Racing MX 530 F |
|
Year of manufacture
|
2007 |
|
Type
|
Cross / motocross |
|
Rating
|
2.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
527.7 ccm (32.20 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
98.0 x 70.0 mm (3.9 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin FCR 41mm |
|
Ignition
|
Kokusan CDI Electronic with variable advance |
|
Lubrication system
|
Dry sump with double rotor pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-disk in oil bath with hydraulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Cr-Mo steel Perimetral oval section |
|
Front suspension
|
Marzocchi USD 50mm ( optional Ohlins 48mm ) |
|
Rear suspension
|
Sachs Boge (optional Ohlins ) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc. Nissin pump and Brembo caliper |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc. Nissin pump and caliper |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
