| TM Racing's profilation of this bike |
| The engines justifies the prices of these jewels of engineering that appeal to a niche market made up of very demanding customers. |
|
General information |
|
Model name
|

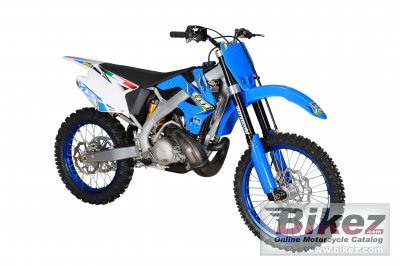

TM Racing MX 300 |
|
Year
|
2011 |
|
Category
|
Cross / motocross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
294.0 ccm (17.94 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
V-Force Reed valve |
|
Bore x stroke
|
72.0 x 72.0 mm (2.8 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin PWM 38 |
|
Ignition
|
Kokusan CDI |
|
Lubrication system
|
3.5% mixture |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-disk in oil bath with hydraulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimetral aluminium section |
|
Front suspension
|
Marzocchi USD 50mm |
|
Rear suspension
|
Sachs Boge, optional Ohlins |
|
Front tire
|
100/90-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc. Nissin pump and Brembo caliper |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc. Nissin pump and Brembo caliper |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
Blue rims. |
|
Physical measures and capacities |
|
Fuel capacity
|
8.70 litres (2.30 US gallons) |
|
Other specifications |
|
Color options
|
Light blue |
|
Starter
|
Kick |
|
Comments
|
Italian made bike. |
