General information |
|
Motorcycle name
|

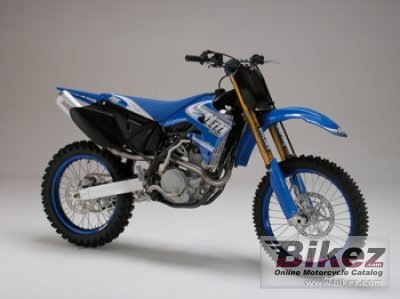

TM Racing MX 250 F |
|
Model year
|
2005 |
|
Category
|
Cross / motocross |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
249.5 ccm (15.22 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni TDMR 38 mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Koukusan CDI electronic w/ variable advance |
|
Lubrication system
|
Dry sump with double rotor pump. |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-disk in oil-bath with hydraulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Cr-Mo steel. Perimetral oval section. |
|
Front suspension
|
Kayba/Paioli USD 48 mm |
|
Rear suspension
|
Ohlins |
|
Front tire
|
90/90-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
|
Comments
|
Electric starter as option. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 TM Racing MX 250 F discussion group or the general TM Racing discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this TM Racing bike
|
Reliability for the 2005 TM Racing MX 250 F:
 (75.1 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
