| TM Racing's profilation of this bike |
| The philosophy that has always distinguished TM is without doubt the choice of materials, which must always be of the
highest quality, and the workmanship, even defined by some as ´obsessive´, not to mention the high performance of the engines used on the standard bikes, in many cases far superior to those of the most prestigious competitors. |
|
General information |
|
Model name
|

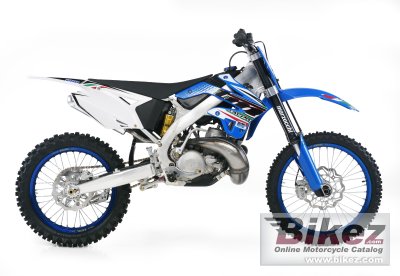

TM Racing MX 250 |
|
Year
|
2012 |
|
Category
|
Cross / motocross |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
249.0 ccm (15.19 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
V-Force Reed valve |
|
Bore x stroke
|
66.4 x 72.0 mm (2.6 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin PWM 38 |
|
Ignition
|
Kokusan CDI Electronic with variable advance with two selectable maps through handlebar switch |
|
Lubrication system
|
3.5% oil mixture |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-disk in oil bath with hydraulic control |
|
Driveline
|
Primary drive: Straight – tooth gear |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimetral aluminium |
|
Front suspension
|
Marzocchi upside-down fork |
|
Rear suspension
|
Sachs Boge (optional Ohlins ) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc. Braking wave disk. With Nissin pump and caliper |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc. Braking wave disk. With Nissin pump and caliper |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
Spoked, blue rims. |
|
Physical measures and capacities |
|
Fuel capacity
|
8.70 litres (2.30 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Kick |
|
Comments
|
From Italy. |
