| TM Racing's profilation of this bike |
| The philosophy that has always distinguished TM is without doubt the choice of materials, which must always be of the highest quality, and the workmanship, even defined by some as ´obsessive´, not to mention the high performance of the
engines used on the standard bikes, in many cases far superior to those of the most prestigious competitors. This justifies the prices of these jewels of engineering that appeal to a niche market made up of very demanding customers. |
|
General information |
|
Motorcycle name
|

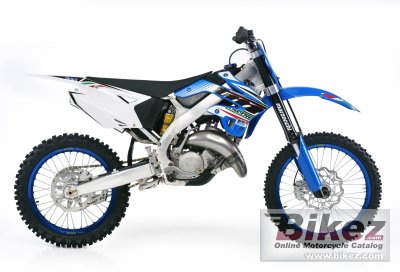

TM Racing MX 144 |
|
Year model
|
2012 |
|
Type
|
Cross / motocross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
143.4 ccm (8.75 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Engine details
|
V-Force Reed intake valve |
|
Compression
|
17.2:1 |
|
Bore x stroke
|
56.0 x 58.2 mm (2.2 x 2.3 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 38 |
|
Ignition
|
Kokusan CDI Electronic with variable advance with two selectable maps |
|
Lubrication system
|
3.5% oil mixture |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-disk in oil bath with hydraulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Alluminium perimetral |
|
Front suspension
|
Marzocchi USD 50mm |
|
Rear suspension
|
Sachs Boge (optional Ohlins ) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc. Braking wave Disk. With Nissin pump and caliper. |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc. Braking wave Disk. With Nissin pump and caliper. |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
Blue rims |
|
Physical measures and capacities |
|
Fuel capacity
|
8.70 litres (2.30 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Kick |
|
Light
|
Primary drive: Straight – tooth gear |
|
Comments
|
Italian made bike. |
