| TM Racing's profilation of this bike |
| The high performance of the engines used on the standard bikes, are in many cases far superior to those of the most prestigious competitors. |
| General information |
|---|

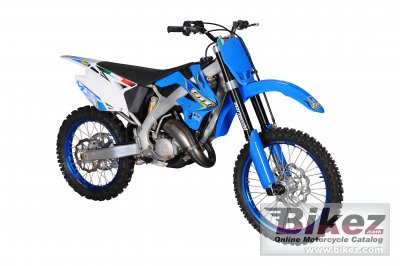

| Model | TM Racing MX 125 |
| Year | 2011 |
| Category | Cross / motocross |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 123.5 ccm (7.54 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | V-Force Reed valve |
| Bore x stroke | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. Keihin PWK 38 |
| Ignition | Kokusan CDI Electronic with variable advance |
| Lubrication system | 3.5% oil mixture |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiple-disk in oil bath with hydraulic control |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Perimetral aluminium section |
| Front suspension | Marzocchi USD |
| Rear suspension | Sachs Boge (optional Ohlins ) |
| Front tire | 90/90-21 |
| Rear tire | 100/90-19 |
| Front brakes | Single disc. Wave disk. Nissin pump and caliper |
| Diameter | 270 mm (10.6 inches) |
| Rear brakes | Single disc. Wave disk. Nissin pump and caliper |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Fuel capacity | 8.70 litres (2.30 US gallons) |
| Other specifications |
|---|
| Color options | Blue |
| Starter | Kick |
| Light | No lights |
| Comments | Made in Italy. |
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Also check out our overview of motorcycle webshops at Bikez.info. |
| Motocross parts | Parts and accessories available from Revzilla Motocross . Ships to the US. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 TM Racing MX 125 discussion group or the general TM Racing discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this TM Racing bike
|
Racing track capabilities for the 2011 TM Racing MX 125:
 (74.3 out of 100)
