| TM Racing's profilation of this bike |
| The philosophy that has always distinguished TM is without doubt the choice of materials, which must always be of the
highest quality, and the workmanship, even defined by some as ´obsessive´, not to mention the high performance of the
engines used on the standard bikes, in many cases far superior to those of the most prestigious competitors. This
justifies the prices of these jewels of engineering that appeal to a niche market made up of very demanding customers.
|
|
General information |
|
Model name
|

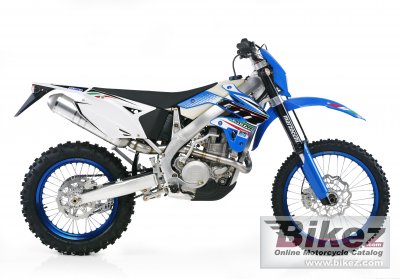

TM Racing EN 530 F |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
527.7 ccm (32.20 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
10.5 HP (7.7 kW)) |
|
Bore x stroke
|
98.0 x 70.0 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni TDMR 41 mm Carburetor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan DCI Electronic with variable advance |
|
Lubrication system
|
Dry sump with 2 pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Driveline
|
Primary drive: Straight – tooth gear |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimetral aluminium |
|
Front suspension
|
Marzocchi USD fork, 50mm |
|
Rear suspension
|
Sachs Boge (optional Ohlins o TM) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-19 |
|
Front brakes
|
Single disc. Braking wave Disk. With Nissin pump and caliper |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc. Braking wave Disk. With Nissin pump and caliper |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
Spoked. Blue rims |
|
Physical measures and capacities |
|
Fuel capacity
|
8.20 litres (2.17 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Electric & kick |
|
Comments
|
Italian brand. |
