General information |
|
Motorcycle name
|

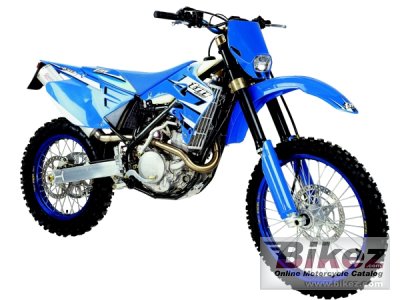

TM Racing EN 250 F e.s. |
|
Year model
|
2006 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
249.5 ccm (15.22 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
15.5:1 |
|
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
|
Fuel system
|
Carburettor. Mikuni TDMR 38 mm. |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan CDI Electronic with variable advance |
|
Lubrication system
|
Dry sump with double rotor pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiuple-disk in oil-bath with hydaulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Cr-Mo steel Perimetral oval section |
|
Front tire
|
90/90-X21 |
|
Rear tire
|
120/90-X18 |
|
Front brakes
|
Single disc |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Color options
|
Blue |
|
Starter
|
Electric & kick |
