| General information |
|---|

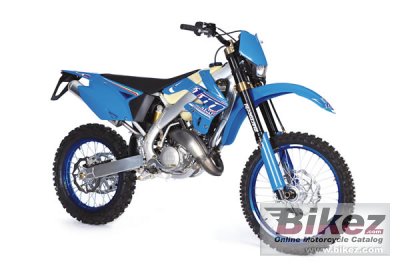

| Model: | TM Racing EN 144 |
| Year: | 2010 |
| Category: | Enduro / offroad |
| Rating: | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 143.4 ccm (8.75 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 16.7:1 |
| Bore x stroke: | 56.0 x 58.2 mm (2.2 x 2.3 inches) |
| Fuel system: | Carburettor. Keihin PWK 38 |
| Ignition: | Kokusan CDI Electronic with variable advance with two selectable maps through handlebar switch |
| Lubrication system: | Mixture 3.5% |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiuple-disk in oil-bath with hydaulic control |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Perimetral aluminium section |
| Front suspension: | Marzocchi USD |
| Rear suspension: | Sachs Boge ( optional Ohlins ) |
| Front tyre: | 90/90-X21 |
| Rear tyre: | 120/90-X18 |
| Front brakes: | Single disc. Nissin pump and caliper |
| Diameter: | 270 mm (10.6 inches) |
| Rear brakes: | Single disc. Nissin pump and caliper |
| Diameter: | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Fuel capacity: | 8.70 litres (2.30 gallons) |
| Other specifications |
|---|
| Color options: | Blue/gray |
| Comments: | Italian brand |
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Dirt-bike parts | Dirt-bike parts and gear available from Mega Motor Madness . Ships to most countries. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 TM Racing EN 144 discussion group or the general TM Racing discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this TM Racing bike
|
Value for money for the 2010 TM Racing EN 144:
 (69.3 out of 100)
