| TM Racing's profilation of this bike |
| The philosophy that has always distinguished TM is without doubt the choice of materials, which must always be of the
highest quality, and the workmanship, even defined by some as ´obsessive´, not to mention the high performance of the
engines used on the standard bikes, in many cases far superior to those of the most prestigious competitors. This
justifies the prices of these jewels of engineering that appeal to a niche market made up of very demanding customers. |
|
General information |
|
Model
|

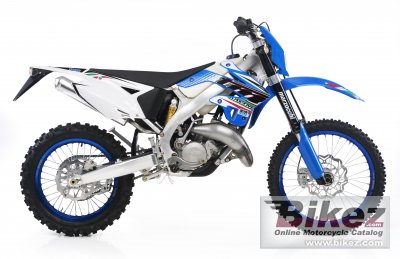

TM Racing EN 125 |
|
Year of manufacture
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
123.5 ccm (7.54 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Engine details
|
V-Force Reed intake valve |
|
Output
|
7.4 HP (5.4 kW)) |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 38 |
|
Ignition
|
Kokusan CDI Electronic with variable advance with two selectable maps |
|
Lubrication system
|
3.5% oil mixture |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiple-disk in oil bath with hydraulic control |
|
Driveline
|
Primary drive: Straight – tooth gear. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimetral aluminium |
|
Front suspension
|
Marzocchi USD 50 mm |
|
Rear suspension
|
Sachs Boge (optional Ohlins TM ) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
120/90-18 |
|
Front brakes
|
Single disc. Wave disk. Nissin pump and caliper |
|
Diameter
|
270 mm (10.6 inches) |
|
Rear brakes
|
Single disc. Wave disk. Nissin pump and caliper |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
Blue rims |
|
Physical measures and capacities |
|
Fuel capacity
|
8.70 litres (2.30 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Kick |
|
Comments
|
Italian made bike. |
