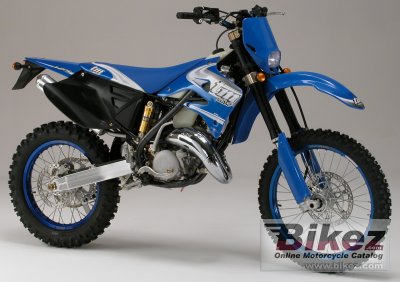

2005 TM Racing EN 125. Picture credits - TM racing. Submit more pictures.

2005 TM Racing EN 125

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Insurance quotes
Finance options
Tip a friend
List related bikes

General information
Model:	TM Racing EN 125
Year:	2005
Category:	Enduro / offroad
Rating:	3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike.
Engine and transmission
Displacement:	123.5 ccm (7.54 cubic inches)
Engine type:	Single cylinder, two-stroke
Compression:	16.7:1
Bore x stroke:	54.0 x 54.5 mm (2.1 x 2.1 inches)
Fuel system:	Carburettor. Keihin 38 mm PWK
Ignition:	Koukusan CDI electronic w/ variable advance
Cooling system:	Liquid
Gearbox:	6-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Frame type:	Cr-Mo steel. Perimetral oval section.
Front suspension:	Kayba/Paioli/Ohlins
Rear suspension:	Ohlins
Front tyre:	90/90-21
Rear tyre:	120/90-18
Front brakes:	Single disc
Diameter:	270 mm (10.6 inches)
Rear brakes:	Single disc
Diameter:	245 mm (9.6 inches)
Physical measures and capacities
Dry weight:	40.8 kg (90.0 pounds)
Wheelbase:	37871 mm (1,491.0 inches)
Fuel capacity:	8.00 litres (2.11 gallons)
