General moped information |
|
Motorcycle name
|

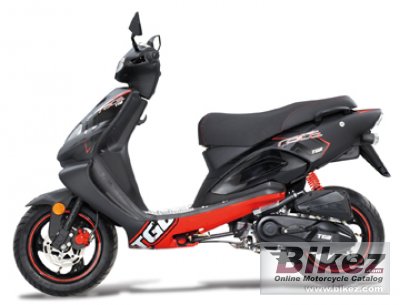

TGB Xrace 50 |
|
Year
|
2012 |
|
Category
|
Scooter |
|
Rating
|
3.2 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.3 ccm (3.01 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
4.9 HP (3.6 kW)) @ 7000 RPM |
|
Compression
|
7.8:1 |
|
Bore x stroke
|
41.0 x 41.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Oil Pump Separate |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
CVT |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
92.0 kg (202.8 pounds) |
|
Power/weight ratio
|
0.0533 HP/kg |
|
Overall height
|
1170 mm (46.1 inches) |
|
Overall length
|
1830 mm (72.0 inches) |
|
Overall width
|
660 mm (26.0 inches) |
|
Fuel capacity
|
6.80 litres (1.80 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Electric & kick |
|
Electrical
|
12V 4AH battery. |
|
Comments
|
Taiwanese made scooter. |
