General information |
|
Model name
|

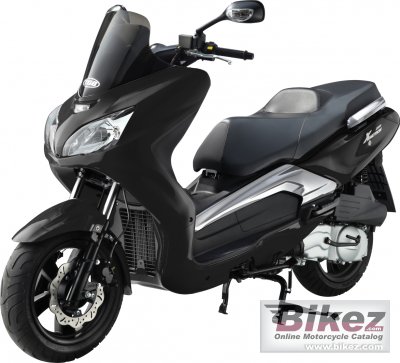

TGB X Large 125R |
|
Year
|
2011 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.5 ccm (7.60 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
11.3 HP (8.2 kW)) @ 8500 RPM |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Compress and splash combined |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
CVT |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/60-13 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Black 5-spoke wheels |
|
Physical measures and capacities |
|
Dry weight
|
175.0 kg (385.8 pounds) |
|
Power/weight ratio
|
0.0646 HP/kg |
|
Overall length
|
2130 mm (83.9 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
